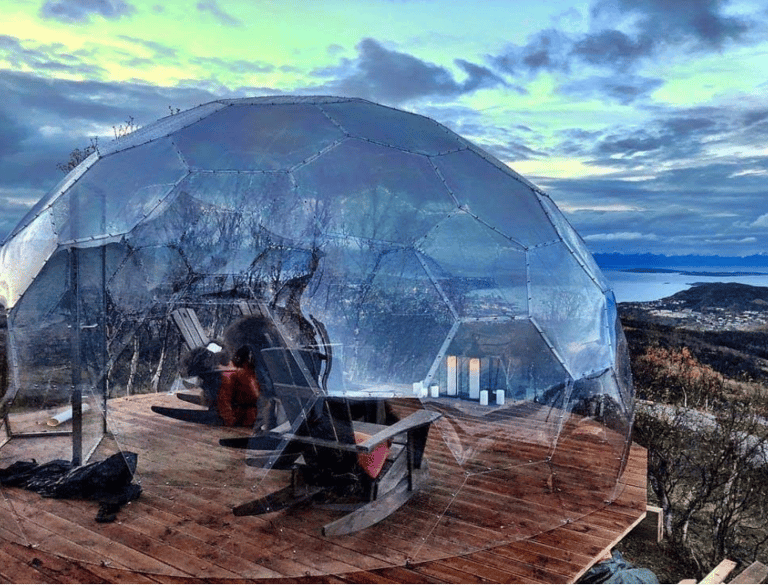

Polycarbonate Frameless Domes

Polycarbonate Frameless Domes is a new type of dome for personal or business use.

The crystal-clear design allows it to blend with its surroundings.

It´s strong enough to be used as a permanent structure, yet easy enough to dismantle or move whilst assembled.

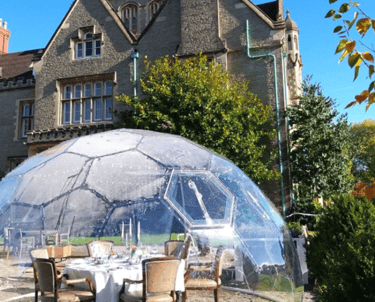

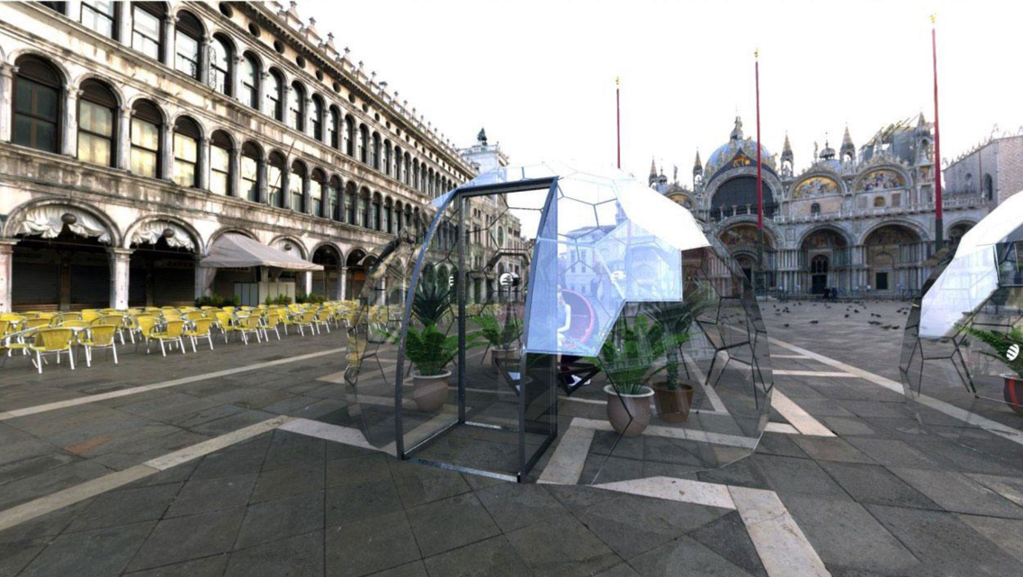

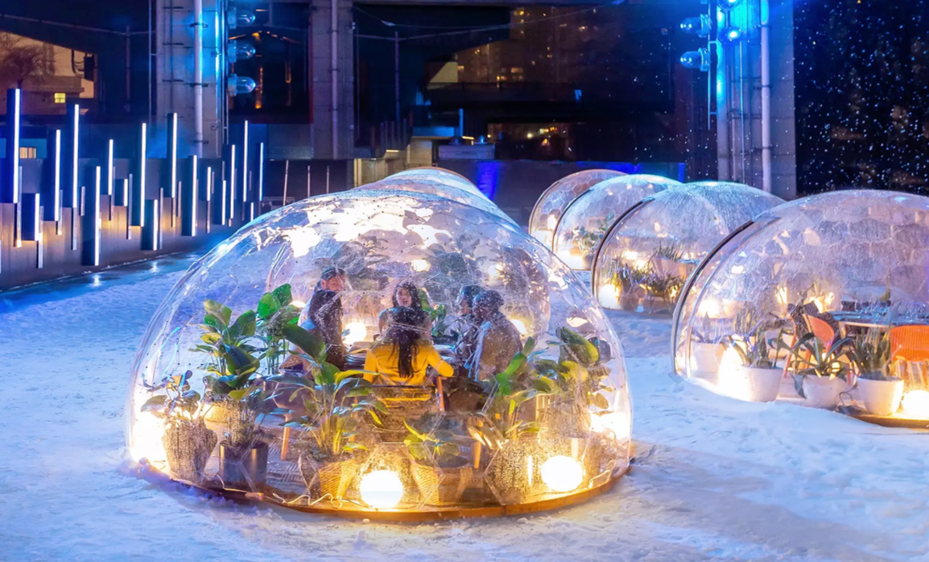

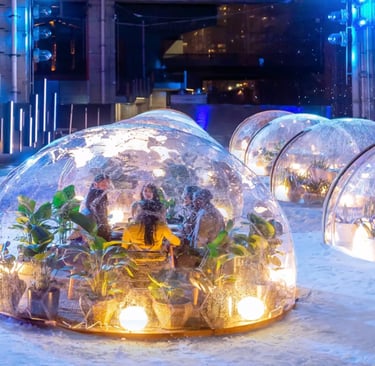

Uses: Outdoor café/restaurant, Event pods, Trading pod, Exhibition Hall, Garden pod, Luxury Greenhouse, Kids playground, and many more.

More Info

Frameless, Polycarbonate sheets, Transparent, UV protected polycarbonate sheets, Aluminum door frame, Long Lifetime, Fast Assembly, Portable.

Available sizes: 3m till 10m in diameter

• Ready to install polycarbonate hexagon panels.

• High grade (AISI) stainless steel bolts and fittings.

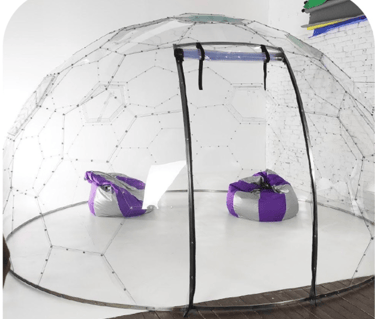

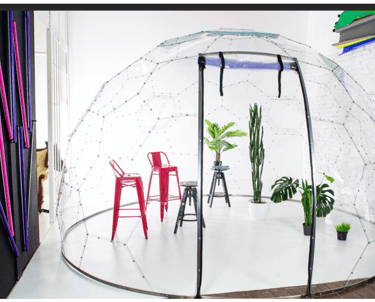

• High grade (AISI) stainless curved door frame.

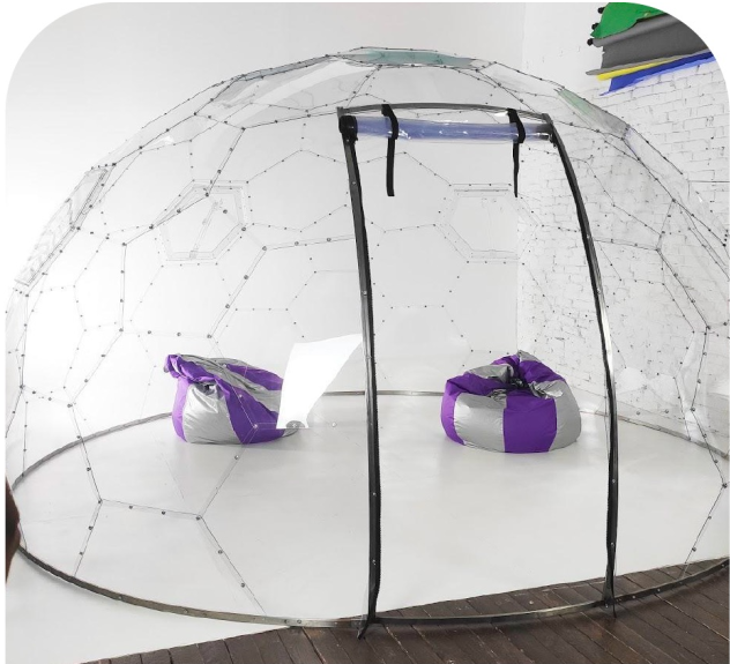

• Tempered safety glass door with fittings or PVC door.

• Ground attaching fasteners.

• Installation Time: 6 hours

Polycarbonate Frameless

DOME KIT

• Passive Ventilation – 3 panels

• Active ventilation – 2 vents ( on request)

• UV-protected

• 100% recyclable European-made polycarbonate panels (ISO 9001: 2008)

• 30dB Sound reduction index

• Fire safety compliant

• 40km/h wind resistance

• 30 times more impact-resistance than glass

• 15+ years lifespan

Technical Qualities

Polycarbonate Frameless Domes

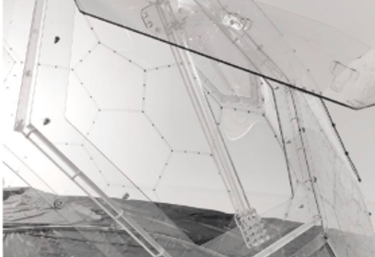

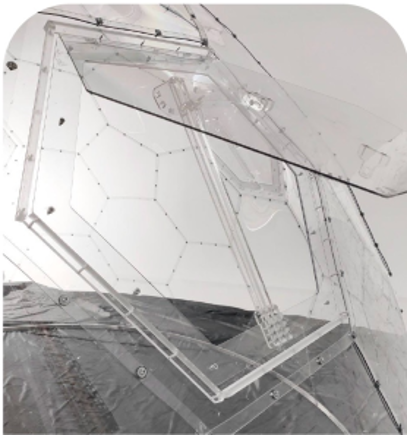

Windows

• Polycarbonate Doms can be equipped with hexagon-shaped automatic windows.

• Quantity and placement of openings is calculated for each Dome individually depending on the location’s temperature.

• In some cases, dome can be used without windows at all.

• Windows are made from polycarbonate and attached with hinges to the dome cover.

Polycarbonate Dome Ventilation

• Since the dome shell is assembled from separate polycarbonate curved parts, miniature gaps occur facing towards the ground .

• This ensures that even without any windows the air inside the dome will circulate and change over time.

• The parts are connected to each other in a “fish skin” manner, insuring waterproof qualities.

Infrared Heat:

• One of the most efficient heating types is infrared heating.

• Mostly used in domes when space is not used all day long.

• The heater usually is installed on the top of the door jamb facing the dome’s centre.

Air conditioner

• Polycarbonate Dome can be equipped with a portable AC. Thanks to the dome’s geometry air is evenly distributed.

Availability

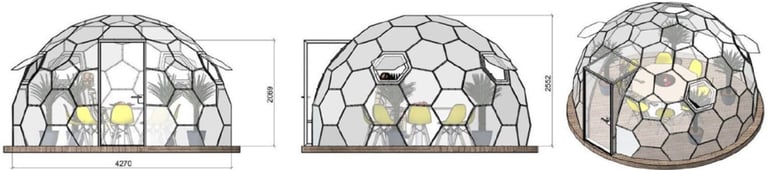

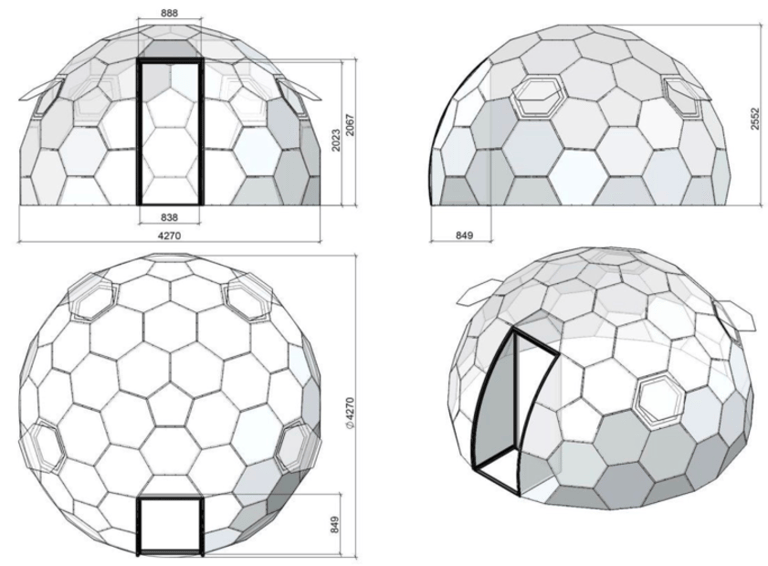

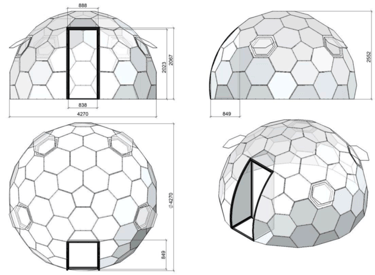

Polycarbonate Dome 4.3m:

• Diameter: 4.27m

• Height: 2.55m

• Floor Area: 14.3sqm

• Polycarbonate thickness: 3mm

• Capacity: 7-10 people

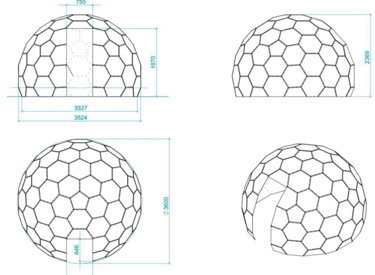

Polycarbonate Dome 3.6m:

• Diameter: 3.6m

• Height: 2.14m

• Floor Area: 10sqm

• Polycarbonate thickness: 2-3mm

• Capacity: 6-8 people
